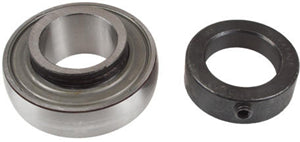

ROLAMENTO DE INSERÇÃO SELADO 1-1/2" ID - ANEL INTERNO ESTREITO
Montagem do produto
| Make | Type | Model |
|---|---|---|
| Ford_New Holland | Hay Baler | 640, 644, 648, 650, 654, 658, 660, 664, 678, 688 |
Recursos do produto
Ball Bearing Insert
Narrow Inner Ring - Sealed Standard Agricultural Applications
RA-RRB Series
- Narrow Inner ring type with self-locking collar
- Positive contact—land-riding R-Seal provides improved protection against harmful contaminants and retains lubricant under severe operation conditions
- Factory pre-lubricated
- Spherical OD for use in housings with corresponding spherical inside surface to unrestricted initial alignment
Especificações do produto
| Basic Outer Ring Size | 208 |
|---|---|
| Bearing I.D. | 1-1/2" |
| Bearing O.D. | 80mm |
| Bearing Type | Insert Bearing |
| Bore Shape | Round |
| Brand | Timken |
| Greasable / Sealed | Sealed |
| Inner Race | Narrow |
| Inner Ring Width | 1.188 Inch |
| Interchange Numbers | 141356, 15A16808, 212-001-BRG, 212001BRG, 241565, 403960D, 50468, 50488, 52443, 6050-089, 6050089, 664175R92, 832122M1, 832122M91, 833416M1, 9-90073, 9202, 990073, A050468, ARA108NPPB, C26320, FH050468, JD9202, K4962, L4972, NPS108RPC, RA108NPPB, TP-JD9202, TPJD9202, YET208108W |
| Outer Race Shape | Spherical |
| Outer Ring Width | .827 Inch |
| Shaft Lock Type | Lock Collar |
