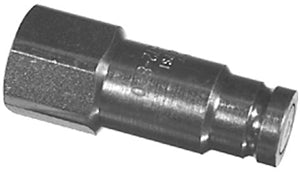

3/8" MALE BODY. 3/8"-18 NPSF FEMALE THREAD. FLAT FACE NON-SPILL STYLE VALVE
Roll over image to zoom in
3/8" MALE BODY. 3/8"-18 NPSF FEMALE THREAD. FLAT FACE NON-SPILL STYLE VALVE

3/8" MALE BODY. 3/8"-18 NPSF FEMALE THREAD. FLAT FACE NON-SPILL STYLE VALVE

SKU: 730-FEM3726FP
Brand: Pioneer
FF and FC Series Nipples (Hydraulic) up to 5000 PSI, meet the requirements of Hydraulic Tool Manufacturer foots Association (HTMA - ISO 16028) standards in the 3/8 inch size, and connect with FF Series Couplers. FC Nipples are designed to connect under pressure, in situations where fluid lines contain residual pressure caused by thermal expansion. FF Couplers and Nipples are available in a range of sizes. For use with pressures up to 5000 PSI.
Price:

Product Specifications

BrandPioneer
Connect Under PressureNo
Coupler Body Size3/8"
Dust Cap SeriesCFE-372-PN
Interchange Numbers 730-FF3726FP, FD49-1002-06-06, FD4910020606, FEM3726FP, FF-372-6FP, FF372-6FP, FFN-38-NPT-M-U, FFN38NPTMU, QA-29222-00, QA2922200
Largest Diameter1.26
Length2.59
Max PSI5000
Rated Flow6 GPM
Sleeve OperationPush to Connect
Thread Size3/8-18 NPTH
Wrench Flats30 mm
